Specifications
| Connection Vacuum Inlet Flange | DN 63 ISO-K |
| Connection vacuum outlet flange | DN 63 ISO-K |
| Cooling Method | Air Cooling |
| Supply Voltage | 3Ph 200/230/400 50 Hz 3Ph 200-208/265/460 60 Hz |
| Power Total Rated | 2200.00 |

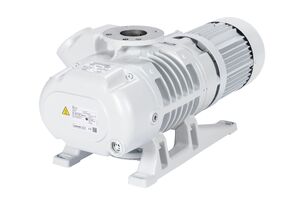

RUVAC WSU 501 H (ACE ABSORBER)
Part Number: 11833
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| 11375 | |
| 11733 | |
| 11733TE | |
| 11738 | |
| 11833 |
General Product Information
| Connection vacuum outlet flange | DN 63 ISO-K |
| Connection Vacuum Inlet Flange | DN 63 ISO-K |
| Cooling Method | Air Cooling |
| Dimension Height | 0.340 |
| Dimension Length | 0.752 |
| Dimension Width | 0.414 |
| IP Rating | IP20 |
| Leak Rate | 1.000 × 10⁻⁵ |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage |
3Ph 200/230/400 50 Hz
3Ph 200-208/265/460 60 Hz |
| Weight | 135.00 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | DN 63 ISO-K | DN 63 ISO-K |
Performance Data
| Power Total Rated | 2200.00 |
| Power Total Rated @50Hz | 2200.00 |
| Power Total Rated @60Hz | 2400.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 12.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range |
Medium Vacuum: 1 mbar - 1·10⁻³ mbar
Rough Vacuum: 1000 mbar - 1 mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Mechanical Booster Pump |
