Specifications
| Connection Vacuum Inlet Flange | 3" BSPP (or G 3") Female |
| Connection vacuum outlet flange | 2 1/2" BSPP (or G 2 1/2") Female |
| Supply Voltage | IEC flange without motor |
| Power Total Rated | 11000.00 |
| Pressure Ultimate | 20000.00 |

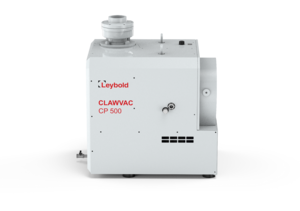

CLAWVAC CP 500 B - 60Hz IEC FLANGE
Part Number: 10790500V01
Dry Claw Pumps
Vacuum dry claw pumps are positive displacement pumps that use two claw-shaped rotors to trap and compress a gas, creating a vacuum. These pumps are oil-free, ensuring clean and maintenance-free operation.
General Product Information
| Connection vacuum outlet flange | 2 1/2" BSPP (or G 2 1/2") Female |
| Connection Vacuum Inlet Flange | 3" BSPP (or G 3") Female |
| Supply Frequency | 60 Hz |
| Supply Voltage | IEC flange without motor |
| Weight | 309.00 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | 3" BSPP (or G 3") Female | 2 1/2" BSPP (or G 2 1/2") Female |
Performance Data
| Power Total Rated | 11000.00 |
| Power Total Rated @50Hz | 9200.00 |
| Power Total Rated @60Hz | 11000.00 |
| Pressure Ultimate | 20000.00 |
| Pumping Speed Air Nitrogen 60Hz | 0.167 |
Operation Conditions - Limitations
| Pressure Absolute Inlet Continous Max | 1.050 × 10⁵ |
| Temperature Inlet Gas Max | 20.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 0.000 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range | Rough Vacuum: 1000 mbar - 1 mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Claw Pump |
